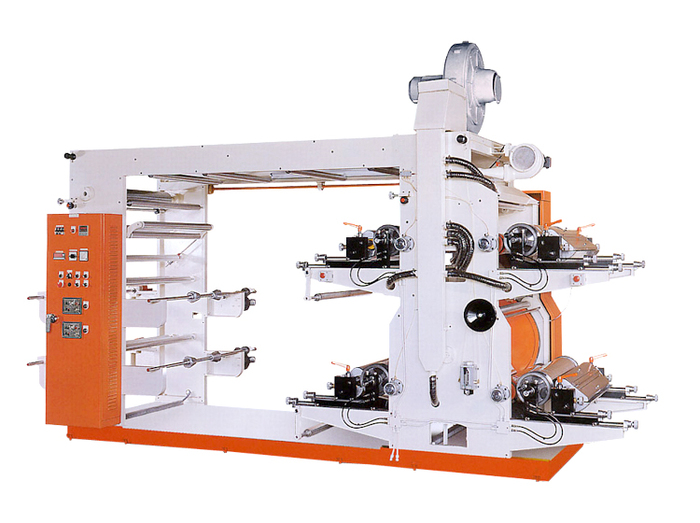

4 Color Flexographic High Speed Printing Machine

CH-HS4001 - Hi-Speed

Printing Width	mm	500	800	1000
Color Printed		4	4	4
Printng Speed (max.)	m/min	85	85	85
EPC		1	1	1
Film Passing Width (max.)	mm	600	900	1100
Printing Length	mm	200-1000	200-1000	200-1000
Printing Possibility	mm	0+4, 1+3, 2+2	0+4, 1+3, 2+2	0+4, 1+3, 2+2
Main Motor	hp	5	7 1/2	7 1/2
Heater	kw/pcs	1.5 x 16	1.5 x 19	1.5 x 22
Blower for Heater	hp	1/2hp x 1, 2hp x 2, 5hp x 1	1/2hp x 1, 2hp x 2, 5hp x 1	1/2hp x 1, 7 1/2hp x 1, 2hp x 2
Hydraulic Pump Motor	hp	1	1	1
Ink Roll Motor	hp	1/2	1/2	1/2
Torque Motor	kg	30 x 2	30 x 2	50 x 2
Total Power	kw	22	25	28

Yoyee Enterprise Co., Ltd.
