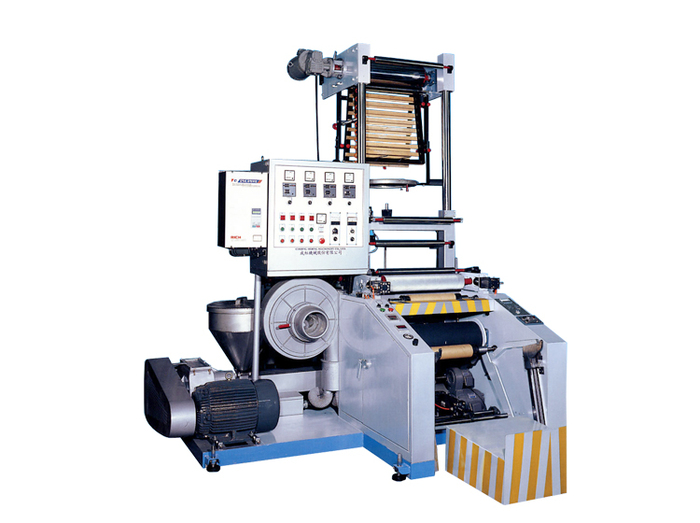

Mini Type HDPE Blown Film Machine (Auto Winder)
| Model | Auto Mini Series | ||
|---|---|---|---|
| Mini-45A | Mini-50A | ||
| Raw Material | HDPE | ||
| Film Thickness | mm | 0.007-0.12 | |
| Film Width | mm | 200-550 | 200-700 |
| Max. Film Output | kg/hr | 50 | 65 |
| Whole Power Required | kw | 30 | 32 |
| Overall Dimension | cm | 255 x 280 x 300 | 255 x 300 x 300 |
| Net Weight | kg | 2000 | 2200 |
| Extruder | Low Base Type | ||
| Screw Diameter | mm | 45 | 50 |
| Screw Ratio | l/d | 28:1 | 28:1 |
| Driving A.C. Motor + Inverter | hp | 20 | 25 |
| Heating Power | kw | 9 | 9 |
| Screw Speed | rpm | 0-110 | 0-110 |
| Cooling Blower | Ø2 1/2" x 1 PC | Ø3" x 1 PC | |
| Temp. Controller | zone | 4 | 4 |
| Die | Spiral Type | ||
| Die Diameter | mm | 65+85 | 65+90 |
| Heating Power | kw | 3 | 3.5 |
| Blower | hp | 5 | 5 |
| Air Ring | set | 1 | 1 |
| Take-Up Unit | Motor Type | ||
| Take-Up D.C. Motor | hp | 1 | 1 |
| Take-Up Roller Width | mm | 600 | 750 |
| Takep-Up Height | mm | 3000 | 3000 |
| Take-Up Speed | rpm | 0-120 | 0-120 |
| Winder | One Station W.Auto Film Cutter & Changer | ||
| Winding Roller | pc | 660mm x 1 | 810mm x 1 |
| Winding Torque Motor | kg/cm | 20 | 20 |
| Embossing Roller | pc | 600mm x 1 | 750mm x 1 |
| Embossing Motor | kg/cm | 20 | 20 |
OPTIONAL EQUIPMENTS :
AIR COMPRESSOR, SURFACE TREATER, AUTO-LOADER, ROTATING DIE DEVICE, TUBULAR-SIZE CONTROLLER, DRYER..ETC.
SPECIFICATIONS ARE SUBJECT TO CHANGE FOR IMPROVEMENT WITHOUT ADVICE.
