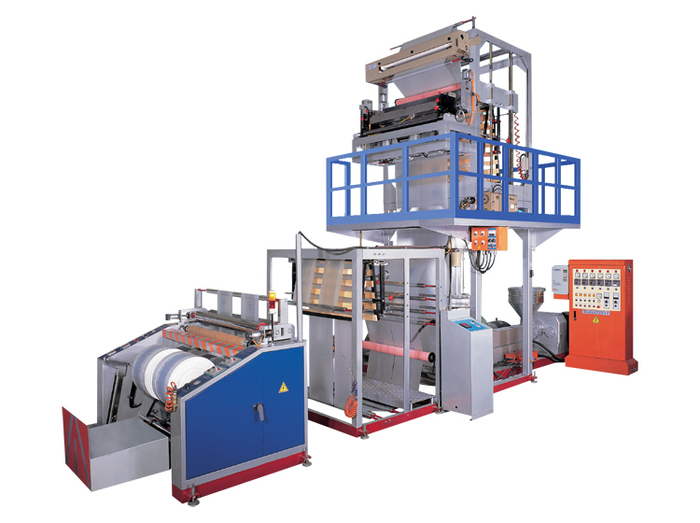

Model		HHPEP Series
		HHPEP-55SA	HHPEP-65SA
Raw Material		HDPE
Film Thickness	mm	0.008-0.2	0.008-0.2
Film Width	mm	(150-460)x2 or (460-950)x1	(200-560)x2 or (560-1150)x1
Extruding Output	kg/hr	30-75	42-90
Whole Power Required	kw	42	55
Overall Dimension	cm	600 x 220 x 420	620 x 240 x 460
Net Weight	kg	4500	5200
Extruder		Low Base Type
Screw Diameter	mm	55	65
Screw Ratio	l/d	30:1	30:1
Driving V.S. Motor	hp	40	50
Heating Power	kw	11	13
Screw Speed	rpm	0-140	0-120
Cooling Blower		Ø3" x 2pcs	Ø3" x 3pcs
Temp. Controller	zone	5	6
Die		Spiral Type
Die Diameter	mm	90&120(Changeable)	100&150(Changeable)
Heating Power	kw	3 or 4.2	3 or 6
Blower	hp	5	5
Air Ring	set	1	1
Take-Up Unit		Motor Type
Take-Up D.C. Motor	hp	1	1
Take-Up Roller Width	mm	1000	1200
Takep-Up Height	mm	4200	4600
Take-Up Speed	rpm	10-120	10-120
Winder		Surface Type / Auto Bobbin Changer
Winding Rooler	pc	1070 x 1	1270 x 1
Torque Motor	kg/cm	20 x 1	30 x 1
Winding Width (max)	mm	1070	1270
Paper Core I.D.	mm	75	75
Paper Code O.D.	mm	95	95
Auto Temp. Controlled Hot Sealer		2 Sets

Model/Description	Color Printed	Printing Speed(max)(m/min)	Film Passing Width	Printed Width(mm)	Printed Length(mm)
CHP-950	1	85	1000	950	200-700
CHP-1150	1	85	1200	1150	200-700

Model/Description	Printing Possibility	Main Motor(hp)	Heater(kw)	Blower For Heater	Total Power Required(kw)
CHP-950	1	DC TM 1/2HP	1.5kw x 2	1/2HP x 2	4.2
CHP-1150	1	DC TM 1/2HP	1.5kw x 2	1/2HP x 2	4.2
