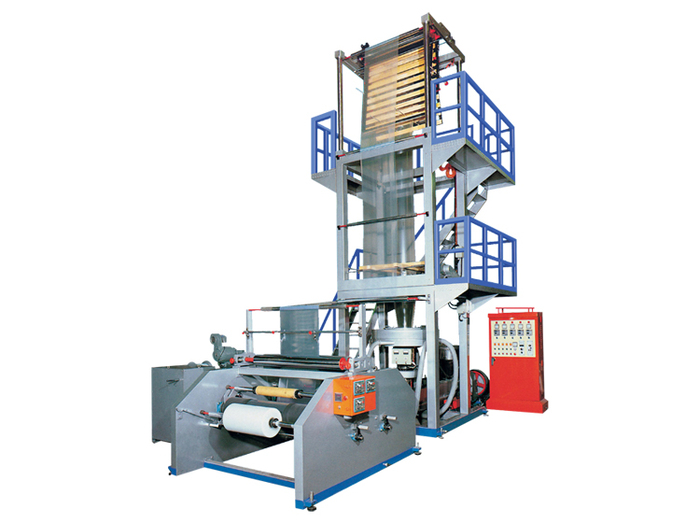

PE Shrinkable Film Extruding Machine-

PE Shrinkable Film Extruding Machine
PES Series
Video
Model PES Series
PES-45 PES-50 PES-55 PES-65 PES-75
Raw Material LDPE Heav Duty
Film Thickness mm 0.03-0.2 0.03-0.2 0.03-0.2 0.03-0.2 0.03-0.2
Film Width mm 150-700 200-750 300-950 400-1150 500-1450
Extruding Output kg/hr 15-60 15-75 20-90 25-120 30-140
Whole Power Required kw 42 45 48 60 80
Overall Dimension cm 420 x 200 x 450 420 x 210 x 450 470 x 220 x 570 480 x 240 x 570 500 x 260 x 590
Net Weight kg 2800 3000 3200 4000 5000
Extruder Low Base Type
Screw Diameter mm 45 50 55 65 75
Screw Ratio l/d 30:1 30:1 30:1 30:1 30:1
Driving V.S. Motor hp 25 30 40 50 75
Heating Power kw 8.5 10 12 14 18
Screw Speed rpm 0-140 0-140 0-140 0-120 0-120
Cooling Blower pcs 2 1/2" x 2 2 1/2" x 2 2 1/2" x 2 3" x 3 3" x 3
Temp. Controller zone 6 6 7 7 8
Die Sprial Type
Die Diameter mm 100 / 150 100 / 150 120 / 200 150 / 250 200 / 300
Rotating Die Device 1
Heating Power kw 3 or 4 3 or 4 3 or 4.2 3.5 or 5 3.5 or 6
Blower hp 5 5 5 5 5
Rotating Air Ring set 1 1 1 1 1
Take-Up Unit Motor Type
Take-Up D.C. Motor hp 1 1 1 1 2
Take-Up Roller Width mm 750 800 1000 1200 1500
Takep-Up Height mm 4500 4500 5700 5700 5900
Take-Up Speed rpm 120 120 120 120 120
Waste Film Collector 1 Set/TM10 Kg/Cm
Winder Surface Type / Two Stations
Winding Roller pc 2 pcs 2 pcs 2 pcs 2 pcs 2 pcs
Torque T.M. Motor kg/cm 15 x 2 pcs 20 x 2 pcs 20 x 2 pcs 30 x 2 pcs 40 x 2 pcs
Winding Roller Width mm 820 x 2 870 x 2 1070 x 2 1270 x 2 1570 x 2
Paper Core I.D. 70 70 70 70 70
Paper Core O.D. 90 90 90 90 90
