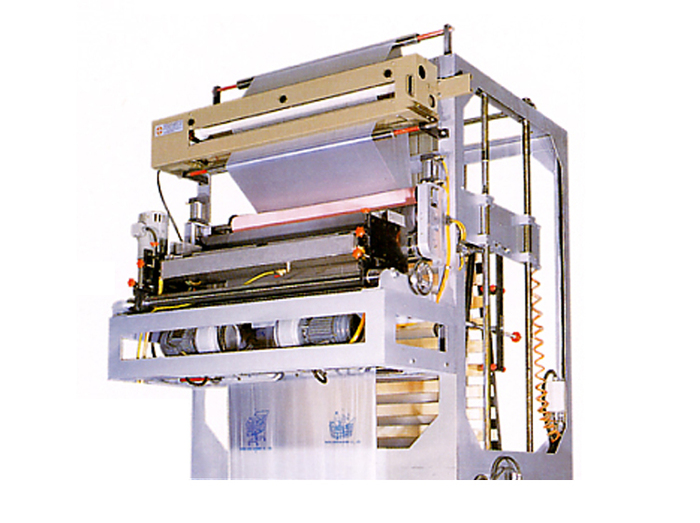

1 Color Printer Mounted on Take-up Tower of Extrusion Machine
1 Color Printer Mounted on Take-up Tower of Extrusion Machine
A color printer mounted on the take-up tower of the extruder is a very practical accessory. It prints a color as the maximum output at a print speed of 85 meters per minute.The machine's power is DC TM 1/2 HP, providing excellent output to the machine during heavy-duty operation. The heater power is 1.5 kW x 2 and the heater blower is 1/2 hp x 2.
| Specifications of 1 Color Flexo Printing Machines | |||
|---|---|---|---|
| Model No. |
CHP-950
Inquiry
|
CHP-1150
Inquiry
|
|
| Color Printed | 1 | 1 | |
| Printng Speed (max.) | m/min | 85 | 85 |
| Film Passing Width | mm | 1000 | 1200 |
| Printed Width | mm | 950 | 1150 |
| Printed Length | mm | 200- 700 | 200- 700 |
| Printing Possibility | kg | 1 | 1 |
| Main Motor | hp | DC TM 1/2 HP | DC TM 1/2 HP |
| Heater | kw | 1.5kw X 2 | 1.5kw X 2 |
| Blower for Heater | 1/2hp X 2 | 1/2hp X 2 | |
| Total Power Required | kw | 4.2 | 4.2 |
| Model | Exposing Machine | Plate-cleaning + Drying | |||
|---|---|---|---|---|---|
| GT-PA2 | GT-PB3 | GT-PA2 | GT-PB3 | ||
| Max Area of Plate | cm | 62 x 44 | 50 x 37 | 62 x 44 | 50 x 37 |
| Power Required | kw | 1.2 | 0.8 | 2.5 | 1.5 |
| Machine Size | cm | 76 x 77 x 38 | 70 x 64 x 38 | 79 x 91 x 92 | 68 x 76 x 92 |
| Machine Weight | kw | 52 | 45 | 110 | 75 |
